Sale!

Professional real-time photography drones GPS UAV aerial FPV Quadcopter RC helicopter with HD camera VS DJI Phantom

$492.54 $462.99

Professional real-time photography drones GPS UAV aerial FPV Quadcopter RC helicopter with HD camera VS DJI Phantom Product List:IntroductionChitwan aircraft is a FPV (First Person View) fou

SKU: 32412922583 Tag:

Description

aeProduct.getSubject()

Professional real-time photography drones GPS UAV aerial FPV Quadcopter RC helicopter with HD camera VS DJI Phantom

aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()

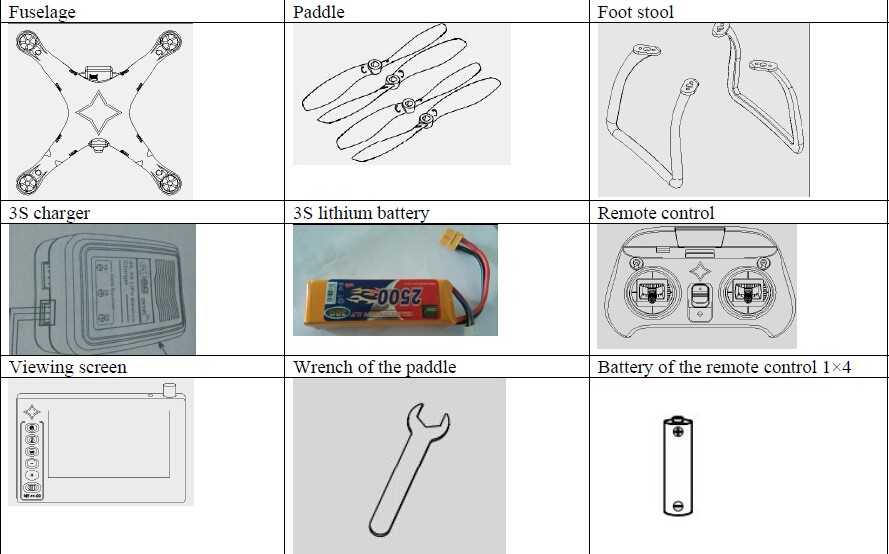

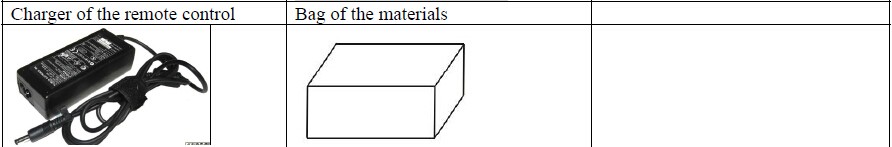

Product List:
aeProduct.getSubject()aeProduct.getSubject()
Introduction
Chitwan aircraft is a FPV (First Person View) four-axis aicraft which was developed by our
company for the model aircraft enthusiasts, and it has a built-in camera and GPS and it
integrates image transmission, real-time display and videorecording. All parameters have
been set before delivery and users just need to conduct simple installations of the propellers
and batteries before realizing the FPV flight and enjoying the real fun of flight.

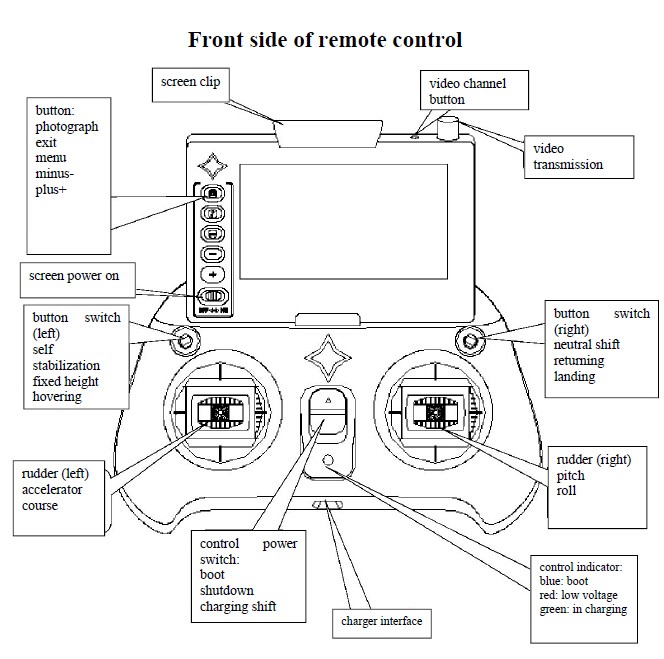

Aircraft and remote control instructions

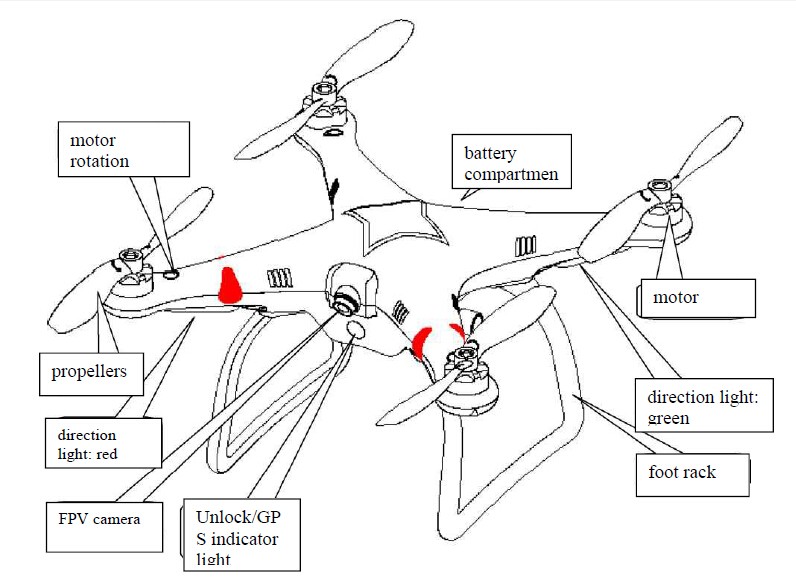

Front side of aircraft
aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
Preparation Before Flight

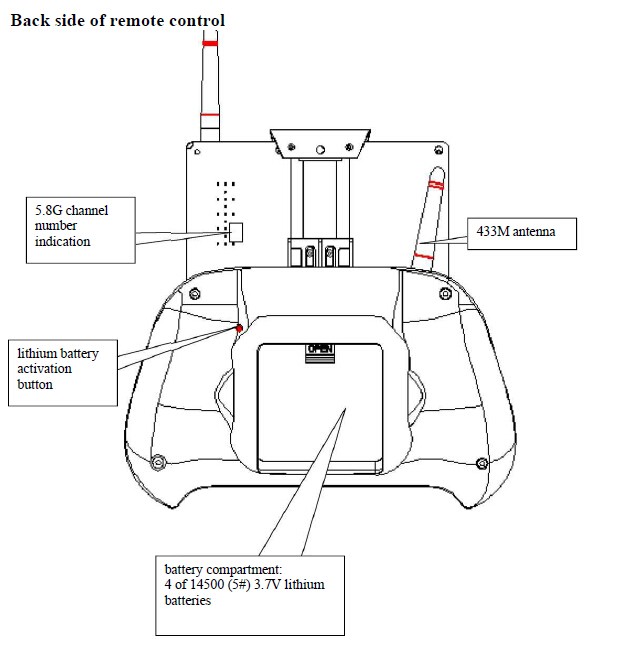

1. Remote control power on
1. Open up the battery compartment on the back of remote control.
2. Put into 4 standard lithium batteries of 14500 (5#) according to the positive and negative
pole logo.
3. Close the battery compartment cover.
4. Press the lithium battery activation button (necessary)
2. Aircraft battery charging
Please use the 3S LiPo full charged battery (recommended battery
parameters: 733496-2500mAH-30C-11.1V)
The maximum design input voltage is 16V and it is strictly prohibited to use the battery pack
of higher voltage for charge the aircraft.
3. Installation of propeller
1. According to the marked rotation direction, install the propellers. (the side with
8045/8045R words upwards)
2. Use the supporting tools to tighten the screw caps
aeProduct.getSubject()
4. Open the remote control
Precautions

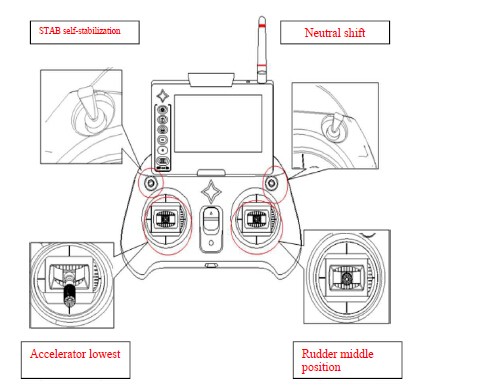

1. Place the left and right button switches on the topmost gear shift (left side
self-stabilization+ right side neutral shift).
2. Push the power switch upwards to start the remote control (indicator light is blue,
working status).
aeProduct.getSubject()
Precautions
• Before remote control power on, make sure the two button switches being placed in the
topmost gear shift, the accelerator in the lowest shift and rudder in middle position.
5. Aircraft power on
1. Find an outdoor open space and put the aircraft horizontally.
2. Open up the battery compartment and put in batteries.
3. Connect the power line of the batteries to the aircraft and make sure the sound of electronic
speed controller is normal (1—3—)
4. Do not touch the rocker and keep the aircraft still for 10 seconds, waiting for system
initialization and self-inspection completion with the status indicator light slowly flashing red.

5. Put the power line into battery compartment and close the cover.
6. Wait for GPS star search positioning which takes about 30 seconds for the first time and
afterwards the status indicator light is constant blue.
Precautions
• Before delivery, the remote control (emission) and aircraft (receiver) have been matched and
please use them in pairs.
Please use the correct type of battery to avoid explosion and handle the useless batteries
according to the instructions of battery.
aeProduct.getSubject()
Precautions
• In order to avoid accidents, every time before unlocking except for ensuring the two button
switches in the topmost shift, check the screen to ensure it is in STAB mode and DISARMED
status and the accelerator is in the lowest shift.
• When the screen battery voltage displays lower than 11.1V, please as soon as possible land
the aircraft to avoid damage due to excessive battery discharge.
Test Flight
1. Find an outdoor open space, horizontally place the aircraft more than 3 m from you,
especially the children to avoid accidental injury.
2. Starting sequence:
(1) Check and make sure the two button switches on remote controllers in the topmost
shift, the left rocker accelerator in the lowest position and the right rocker in the middle
position.
(2) Check whether the remote signal quality on the screen is normal.
(3) Check whether the GPS searching stars are more than 6 and after positioning, the status
indicator light is constant blue.
(4) Pull the accelerator rocker to ↘ the lower right direction and hold it, waiting for
unlocking. (after unlocking the status indicator is constant red and DISARMED
disappears from the screen)
(5) Slowly push the rocker, and when the accelerator is about 20% the motor begins to
rotate and pull the rocker back to 0% to stop the motor, ensuring the accelerator working
normally.
(6) When the accelerator exceeds the middle position, the aircraft can fly and rapidly push
the accelerator to about 65% to make it fly above the ground.
(7) Pay attention to the status of the aircraft and when it flies to the appropriate height, it
can be switched to fixed-height mode (the screen shows ALTH), and under fixed-height
mode, the aircraft can be sensitively operated and controlled to fly around; at this time the
accelerator controls the flying height and try to keep it in the middle position in order to
maintain the flying height.
(8) When the flying height is stable, it can be switched into hovering mode (screen shows
LOIT), and the aircraft has a high wind resistant performance, but the flying control is not
as sensitive as that under fixed-height mode.
3. Under fixed-height or hovering mode, lower the accelerator will slowly descend the aircraft
and after pulling the accelerator to the lowest position, the mode will be switched to STAB
and the motor stops.
4. Pull the accelerator rocker to ↙the lower left and hold it, and the aircraft will be locked
(screen shows DISARMED)
5. Disconnect the power of the aircraft at first and close the remote control to complete the test
flight.
Precautions
The built-in compass of the aircraft has a comparatively high sensitivity and is the sensor
easy to get interference; therefore, please keep it flying away from the position with much
ferromagnetic materials, otherwise the internal magnetoresistive sensor will be affected by the
ferromagnetic materials and work abnormally.
Hovering mode is essentially constant height pressure + compass orientation + GPS
positioning, therefore, the compass cannot be disturbed to correctly keep the direction of head,
and if the direction reported by the aircraft is inconsistent with the geographic direction, it is
needed to re-calibrate the compass, please see the advanced user manual.
Control the speed when the aircraft is landing and pay attention to the propeller ground
effect; it is better to slowly land the aircraft to avoid the aircraft landing impact which may
damage the aircraft.
When the red indicator on the remote control lights on, it means low remote control voltage,
and in order to ensure the safety of the aircraft, please as soon as possible land the aircraft to
avoid the loss of control or crash caused by remote control abnormality.
When put the Flying Tiger inside a car, please keep it away from the loudspeaker to avoid the
compass being affected.

Loss of control and one key return
The aircraft has built-in compass and GPS, and for every flight mission, the
unlocking position is the returning location.
Precautions
Loss of control protection mechanism:
1. If remote control signal loss is more than 5 seconds, the aircraft will automatically enter into
the automatic landing mode.
2. When the battery voltage is lower than 10.5V, he aircraft will automatically enter into the
automatic landing mode.
* above is the default setting, and advanced users can make modifications on the host
machine.
Trigger conditions for returning:
1. Manually switch to the returning shift to trigger the returning.
2. Advanced users set the trigger conditions of returning on the host machine and the specific
conditions are reached.
Returning process:
aeProduct.getSubject()
Precautions
Loss of control protection mechanism:
1. If remote control signal loss is more than 5 seconds, the aircraft will automatically enter into
the automatic landing mode.
2. When the battery voltage is lower than 10.5V, he aircraft will automatically enter into the
automatic landing mode.
* above is the default setting, and advanced users can make modifications on the host
machine.
Trigger conditions for returning:
1. Manually switch to the returning shift to trigger the returning.
2. Advanced users set the trigger conditions of returning on the host machine and the specific
conditions are reached.
Returning process:
Advanced users can set trigger conditions for returning on the host machine, such as loss of
remote control signal, battery voltage too low as well as setting the returning movement and
landing speed, etc. Please see the advanced users manual for details.
• During returning, the aircraft will reach the specific height (default is 3 meters) at first, and
after stabilizing the attitude, it will directly fly to the returning location and then landing at a
speed of 0.5 m/s until successful landing.
• Any time during returing, users can take over the control of the aircraft with the remote control
to switch the flying mode and interrupt the returning.
The error of civil GPS is within 2 meters circle and experienced pilots shall ensure the
returning location is open without obstacles.
In order to ensure correct returning, ensure the GPS satellites are more than 6 before
unlocking, and more than 10 is better.
Low voltage protection
Aircraft three-level voltage alarm protection mechanism:
1. When the aircraft voltage is lower than 11.1V, the remote control screen will give warning
“Battery Low!”, and it is necessary to return and land the aircraft as soon as possible to
replace the batteries.
2. When the battery voltage is lower than 10.8V, the four-axis electronic speed controller
red/green indicator lights of the aircraft will slowly flash, and it is necessary to return and
land the aircraft as soon as possible to replace the batteries.
3. When the battery voltage is lower than 10.5V, the aircraft will be forced to land for
replacing the batteries.
Remote control two-level voltage alarm protection mechanism:
1. When the remote control voltage is lower than 14.8V, the indicator light is constant red,
meaning the voltage is low and only 5 minutes may be left for endurance and it is
necessary to recharge the remote control as soon as possible.
2. When the remote control voltage is lower than 13.8V, the buzzer will send out “BB” alarm,
meaning the current voltage is extreme low and continuous use may lead to loss of control
and it shall immediately stop the aircraft and replace the batteries.
Precautions
Wireless video transmission is a part of large power consumption,and if the aircraft voltage
is too low, the batteries shall be replaced as soon as possible to avoid over discharging.
Description of indicator lights
Aircraft Unlock/GPS status indicator lights
Red : Slow flash— not unlocked Constant light— unlocked
Blue : Slow flash— in positioning Constant light— positioning OK
Green : Constant light— returning or landing
The indicator lights are composed of three R/B/G independent lights to make separate
indicating, therefore, sometimes there will be a color overlap phenomenon such as red plus
blue looks like purpleand make the judgement according the actual slow flash or
constant light.
Remote control indicator light
Red : Constant light—normal working status, sufficient voltage.
Blue : Constant light—remote control battery pack voltage is lower than 14.8V, and it is
necessary to connect it with adapter for recharging.
Green : Quick flash—abnormal recharging (please check whether the switch is in the
recharging shift or certain battery is damaged).
Constant light—normal recharging and after charging, the green light goes out.
Intellectual Property Rights
The intellectual property rights of this product and manual belongs to Chitwan,
and without the written authorization any organization or individual shall not
make any form of reprint, copy or publication. In case of reference and
publication, the source of Chitwan shall be indicated and no reference,
abridgement or modification which is contrary to the Operation Manual shall be
made.
If you encounter any problem that cannot be solved during installation, please
get in touch with the duly authorized agents by Chitwan.
aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()
aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()
aeProduct.getSubject()

aeProduct.getSubject()

Additional information

Material

Plastic

Plugs Type

EU/UK/US/AU

Model Number

ODAT0036

Brand Name

professional UAV aerial

Age Range

> 8 years old

Controller Mode

MODE2

Action Time

10-15mins

Control Channels

6 Channels

Controller Battery

AA battery

Motor

Brushless Motor

Warning

no fire

Package Includes

USB Cable

Warranty

normal

Features

Flashing

Charging Time

about 90minutes

Charging Voltage

100-240V

Power Source

Electric

Dimensions

29cmx29cmx18cm

Remote Distance

350M

State of Assembly

Ready-to-Go

Remote Control

Yes

Type

Helicopter

Reviews

There are no reviews yet.

Be the first to review “Professional real-time photography drones GPS UAV aerial FPV Quadcopter RC helicopter with HD camera VS DJI Phantom”

Your email address will not be published. Required fields are marked *
