2.4G Wireless Touch screen RGB led controller DC12-24A 18A RF remote control for led strip/bulb/downlight,Free Shipping

$15.00 $9.15

2.4G Wireless Touch screen RGB led controller DC12-24A 18A RF remote control for led strip/bulb/downlight

Product Overview:

This item is a high-performance RGB led touch remote contro

Buy product

SKU: 32247032699 Category: Tag:

Product Description

2.4G Wireless Touch screen RGB led controller DC12-24A 18A RF remote control for led strip/bulb/downlight



Product Overview:

This item is a high-performance RGB led touch remote controller, adopting the most advanced PMW control technology, controlling all RGB led products with four lines and three circuits(common anode), owning 640 thousand colors and 20 automatical changing modes to choose.
Also, it has the momory function(that is to say, the previous settings will be resumed when power on again). It is widely used in led RGB strip light,led module and so on.
With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability, high speed telecommunication, etc.
The remote looks fashionable and elegent, with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use.
The modular design and easy screwed terminals enable the controller easy to match with all kinds of led light products.


Specifications:

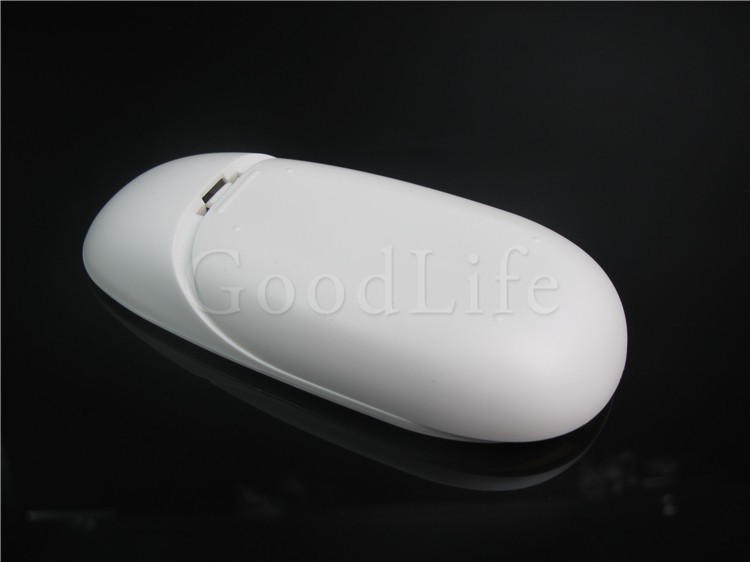

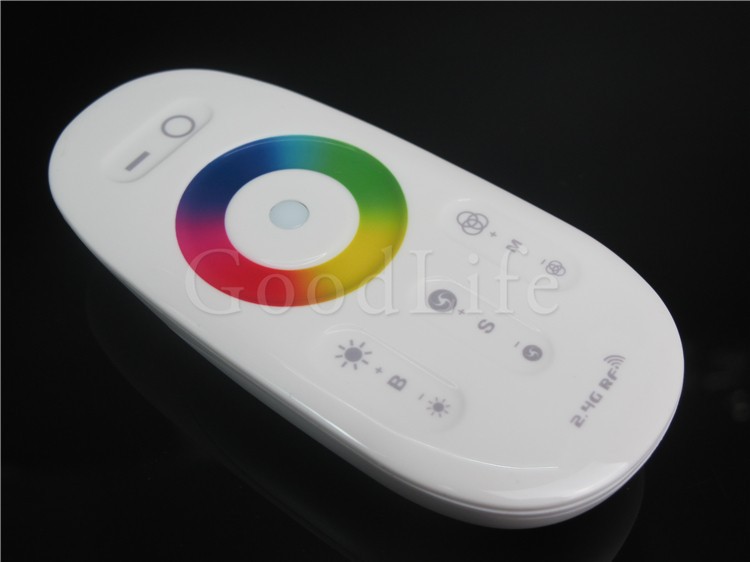

2.4G RF Remote Control
1. Size: 110*52*20mm

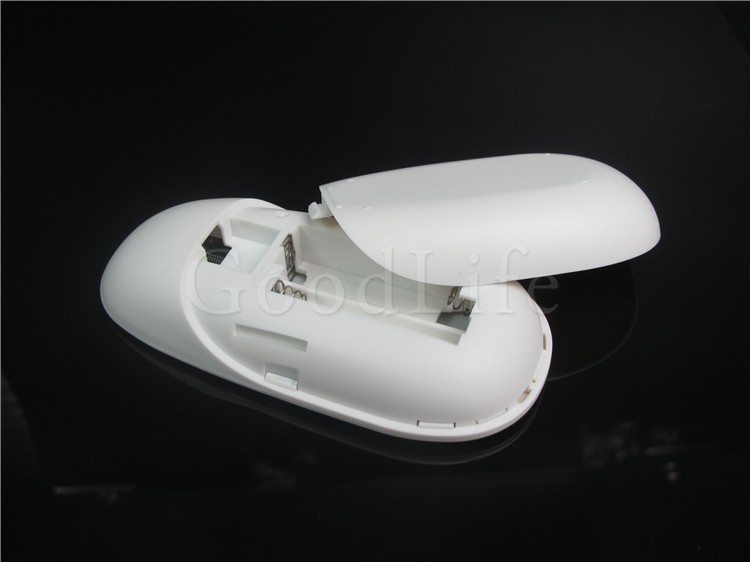

2. Power: AAA battery*2pcs
3. Material:ABS
4. Fabrication: Multicolor printing & UV varnish

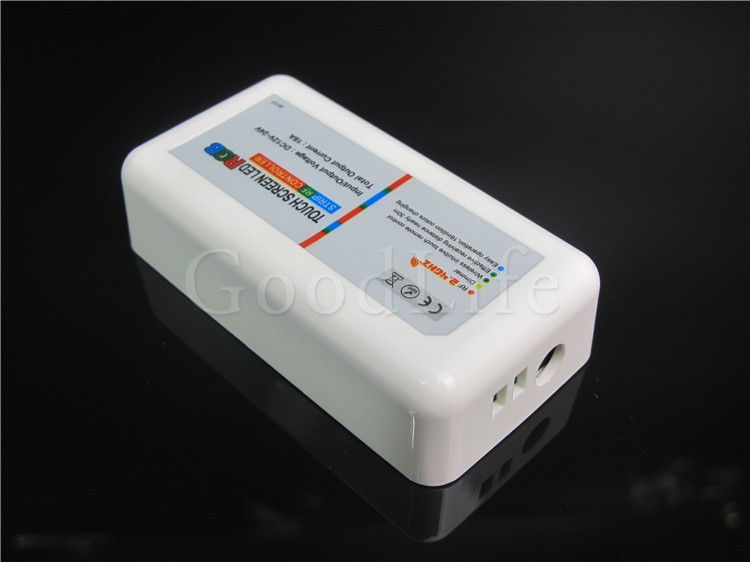

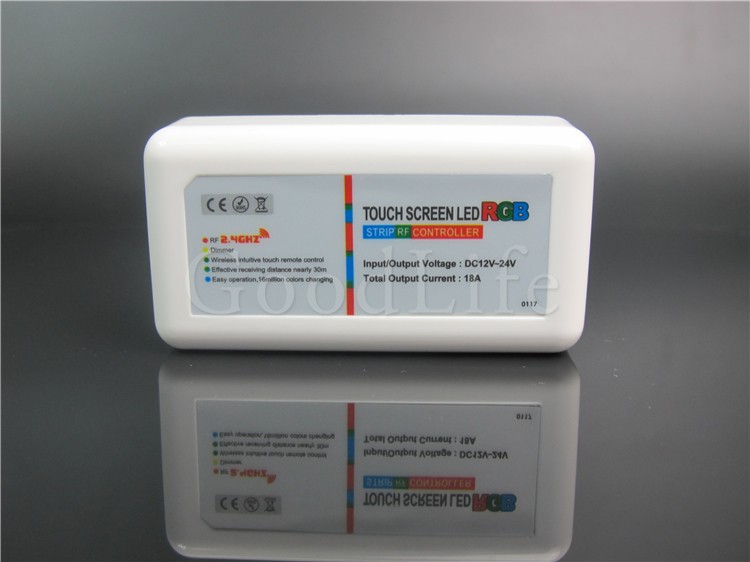

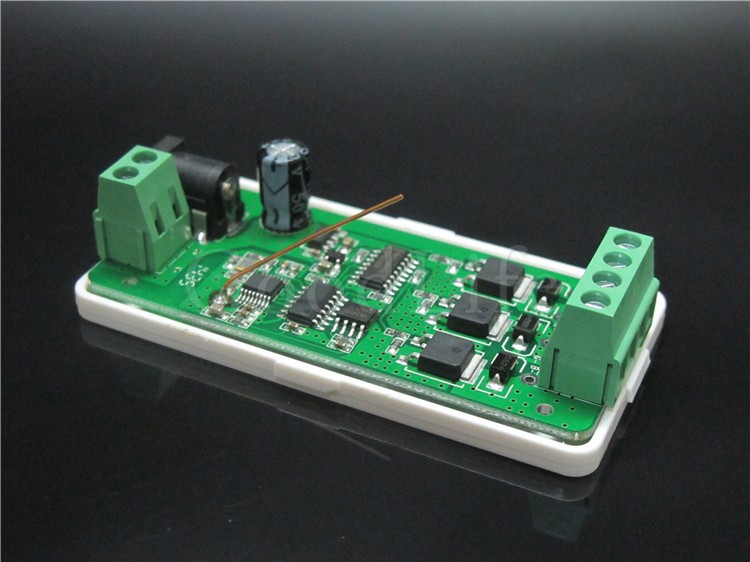

RGB LED Controller
1. Size: 85*45*23mm
2. Working voltage: DC12-24V
3. Control Way: R G B three channels
4. Max load per channer:6A
5. Output connection: Common anode
6. Telecontrol distance: 30 meters
7. Programs: 20 kinds


Attention:

1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode, otherwise the controller will be broken.
2. Please don’t connect wires with power on. Please switch on again only when it is in right connection and no short circuit.
3. Please keep your finger off the touch ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the batteries are installed. Please reinstall the batteries, if the touch ring is found low-sensitivity.
4. Please do not use the controller in the place with widely range metal area or strong electromagnetic wave nearby, otherwise, the remote distance will be seriously affected.



Application:

1. The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
2. The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur
3. Connect the wires of the controller and LED fittings as per the instruction
4. Don’t peel off the label on the controller in case any indication information will be missed.
5. The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.

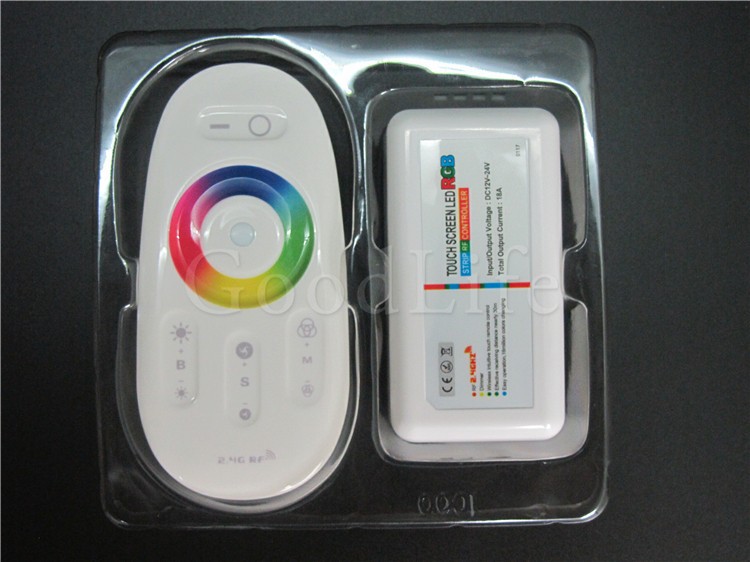

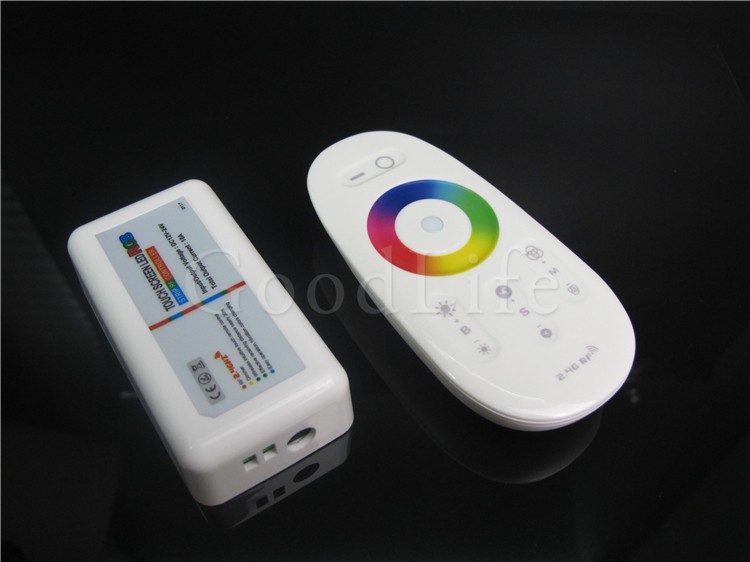

Package included:

1 x LED RGB Controller
1 x 2.4G RF Remote Control(
Not included battery)



IMG_6795
IMG_6802
IMG_6800
IMG_6801
IMG_6796
IMG_6793
IMG_6803
IMG_6814
IMG_6815



If you need RGB LED Strip ,please click on the following image link — Minimum Price $0.76/meter







Full name) which offered by buyers, please confirm your address for payment.

About Customs Duty
In consideration of our customers’ benefit, We are forced to ship your order by regular mail. Please understand, however, customs
duty is out of our control we can’t guarantee no tax fee and will not bear any tax fee. We sincerely apologize for any inconvenience this may cause you.

Note:
If you choose the Free shipping option, your parcel will be directly delivered your home only one time or it will send to your local post office then you need
to take your tracking number and your personal ID to collect your items.We will inform you immediately once your parcel have been sent out.
If you choose Express shipping, please remember to leave your contact number, this is required for express shipping.

rr

Please check the package and the items carefully after receiving.
If any problems, please feel free to contact us.


1. If you are satisfied with our products and services, please leave your positive feedback and 5 stars. And pls tell us, we will give you DISCOUNT for your next order.
2. If you don’t satisfied our porducts, pls contact us before you leave negative feedback. We guarantee we will 100% slove any problem for you.

ri





Additional Information

Item Type

RGB Controler

Button Number

Touch

Brand Name

GoodLife

Features

Touch Screen

Applicable Lights

RGB LED

Warranty

1

Max. Load Power

432W

Wattage

216

Remote Distance

30meters

Certification

CCC

Certification

CE

Certification

RoHS

Color

White

Voltage

12-24V

Material

ABS

Power Source

DC

Connection Mode

Commcon anode

Model Number

RF-RGB-T1

Oscillation frequency

2.405GHz-2.485GHz

Controled Method

2.4G Wireless Control

Programs

20Kids

Max output Current

18 A

is_customized

Yes
